A flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system.
It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed.
Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal. |
|
Product Range : |
The following table represents size range, product standards and material grades of Flanges. |
|
|
|
Item |
|
Welding Neck, Slip-On, Threaded, Socket Welding, Lap Joint, Blind |
|
|
|
|
|
Flange Facing |
|
Raised Face, Flat Face, Lapped Joint Face, Large Male-Female,
Small Male-Female, Large Tongue & Groove,
Small Tongue & Groove, Ring Joint |
|
|
|
|
|
Standard |
|
150 Lb, 300 Lb, 600 Lb, 900 Lb, 1500 Lb, 2500 Lb,
3000 PSI, 5000 PSI & 10000 PSI |
|
|
|
|
|
Carbon Steel Material |
|
ASTM A105 |
|
|
|
|
|
Stainless Steel Material |
|
ASTM A182, F304, F 304L, F 310, F316, F 316L, F 321, etc. |
|
|
|
|
|
Alloy Steel Material |
|
ASTM A182 F1, F5, F11, F12, F22, etc. |
|
|
|
|
|
Low Temperature |
|
ASTM A350 LF2, LF3 |
|
|
|
|
|
Size |
|
¨ö" NB to 48 "NB |
|
|
|
|
|
|

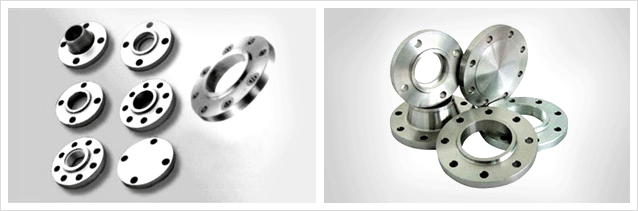

Welding Neck Flange |
Threaded Flange |
Slip-On Flange |
|
|
|
|
Socket Welding Flange |
Lap-Joint Flange |
Blind Flange |
|
|
|
|
|
